TCL Google TV [IP]

⚠️ Important: While this driver works and is used in many homes, we recommend using our other Google TV driver. It provides more functionality, additional power options, and universal mini app support. It controls the TV using a more robust and reliable protocol and provides control over more devices, not just TCL products.

Overview

Local network control of TCL Google TV models from your Control4 system.

Features

• Discrete Power Commands - True On/Off for reliable automation

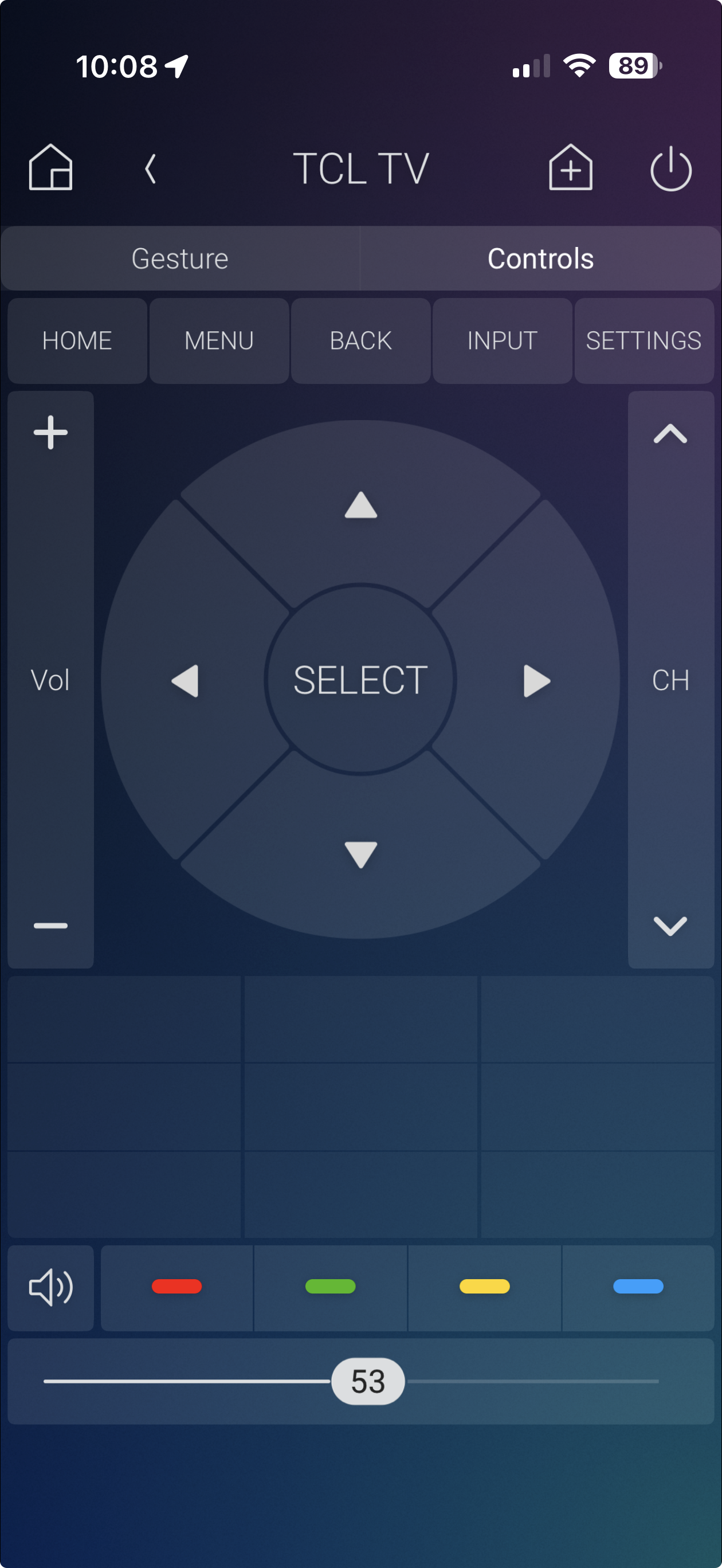

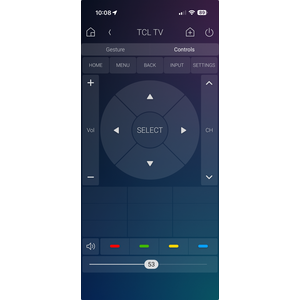

• Full Navigation - D-pad, Home, Menu, Back, Info, and Settings
• Number Pad - Keys 0-9 plus Star, Pound, and Dash for direct channel entry
• Volume & Mute Control - Standard volume up/down and mute toggle
• Channel Control - Up/Down with ramping support

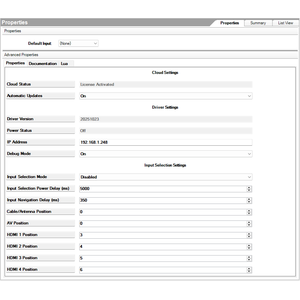

• Input Selection - Access source menu with navigation, or discrete input switching via ADB
• Dual Protocol Support - TCL Protocol (default) or ADB fallback for broader model compatibility

Extended TV Compatibility

This driver supports two control methods to maximize compatibility across TCL TV models:

• TCL Protocol (default) - Uses the native TCL network protocol for direct, efficient control
• ADB Protocol (fallback) - Uses Android Debug Bridge for TVs where the TCL protocol is unavailable

If your TV does not respond to the TCL protocol, switch to ADB mode in the driver properties for full functionality.

Compatible Models

Confirmed: TCL 98QM7

Expected:

• NXTFrame TV
• S551G, S571G, S651G
• Q671G, Q881G
• QM751G, QM851G, QM891G
• C655, C855, P745, QM7, QM8 series
• Other TCL Google TV models

Not Compatible: TCL Roku TVs

Requirements

• Control4 OS Version 3.4.1 or higher (also works with X4+)
• TCL Google TV model (TCL Roku TVs are not compatible)
• TV on the same local network as the Control4 controller
• Google account signed in on the TV (Settings → Accounts)
• Network Standby enabled (Settings → Network & Internet)
• Static IP address or DHCP reservation recommended for reliable connectivity
