Axion Lighting DMX Controller

Free
Axon Engineering
30 days
Axon Engineering
Platform:
Version: 1

Now supports Pixel LED strips using the A-DSA-DMXD DMX Decoder

FREE RTI module for the Axion Lighting DMX Controller. The only DMX controller specifically designed around the Custom Integration market as well as designed and manufactured in the USA! Sign up on their website for dealer discounts.

This is a commercial grade solution designed to deliver unparalleled reliability with a specific focus on the best possible control integration possible. Specifically, the solution gives full exposure of DMX devices in Control4, Crestron, Elan, URC, and RTI systems. The overall solution is designed to give our partners highly flexible, modular installation options that can grow as needs and preferences change.

The Axion DMX solution is primarily targeted at both tunable whites and RGB colors, but because it interacts using the DMX512 protocol it will also support many other commercial devices such as motors, lasers, smoke machines, and more.

Driver Download (Axion_DMX_Lighting_-_RTI_-_Version_1.3.zip, 3,937 Kb) [Download]

DMX Controller RTI Driver

Overview

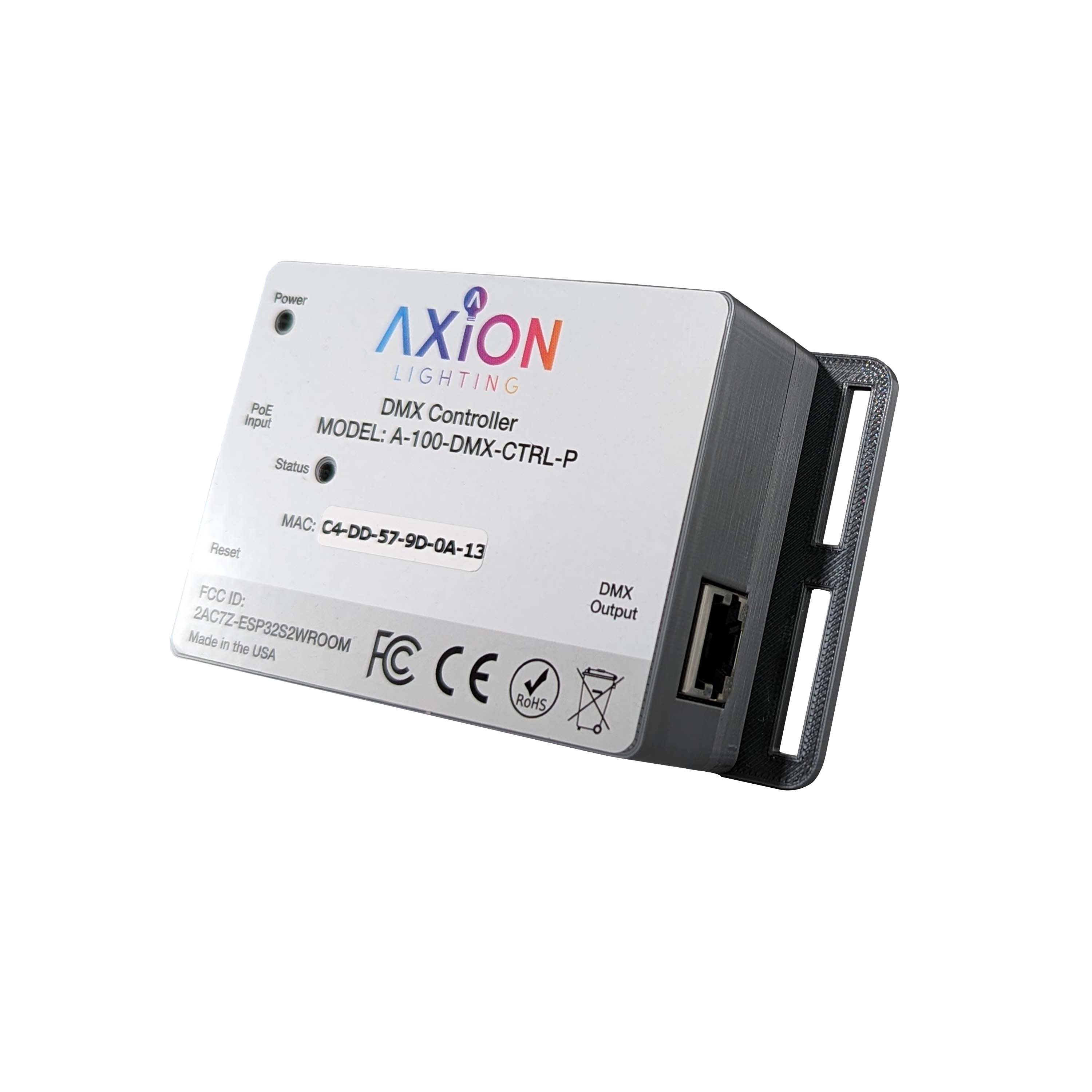

The Axion DMX Lighting Controller enables you to fully control a DMX512 system via IP without the complexity of traditional expensive counterparts. It also delivers a more reliable solution compared to standard consumer Wi-Fi enabled individual lighting options.



Recommended to assign a DHCP reservation or assign the unit a static IP address.



Features

  • Compatible with all DMX512 lighting loads, including devices like lasers and smoke machines
  • Individually addressable, reliable wired bus supports exact timing and dimming
  • Two-way feedback from the device.
  • Trigger any of the pre-programmed color effects



Quick Start Guide

  • Add the controller driver to project.
  • Enter the IP address of the controller.
  • Enter the system password of the controller.



Functions

  • System Control
  • Reboot – Reboots the controller.
  • Light Control
  • Get Level – Gets the level for a given channel.
  • Set Level – Sets the level for a given channel with optional rate and delay.
  • Save Preset – Saves the current channels level in a preset slot.
  • Recall Preset – Recalls the current channels level that was saved in that preset slot.
  • Themes
  • Activate – Activates an RGB enabled theme on your light with optional rate and delay. Start Channel should be the RED Channel. Theme’s randomize with each activation!



Variables

  • System Information
  • Model – Model of the controller.
  • Firmware Version – Current firmware version running on the controller.
  • Light Information
  • Channel X Level – Current Level of the channel.

Events

  • Controller Reboot – Fires when the controller has rebooted.

Version 1.3

Version 1

  • Release
