Philips Hue Wall Switch Pack

*Note: The Bridge driver comes with each 'pack' as it is required to operate any of the device drivers. The Bridge driver in all packs are maintained to the same version so that if a client wishes to purchase further packs, they do not need to run multiple instances of the bridge driver or rebuild their project. As per below, this Pack only includes device drivers to support the hue wall switch.

Philips Hue Wall Switch Pack

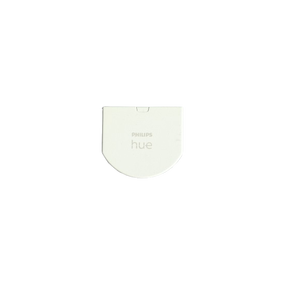

Installed behind light switches, the Philips Hue wall switch module lets you use existing switches with your Philips Hue smart lights. Your lights always stay powered on and reachable, and you can even use the switch to set multiple scenes on an individual light or in a Room or Zone.

The Philips Hue Wall Switch driver is designed to let you unlock the full potential of your wall switch's button inputs, providing homeowners with the reliability of physical switch control while leveraging Control4's advanced customization and automation features, enhancing convenience and flexibility.

Key Features

**Pair with our Advanced Button Connections driver to enable single, double and triple tap capabilities to to the Hue Wall Switch!**

1. Tailored Button Actions

• Assign distinct functions to each button-turn lights on/off, dim to a specific level, or activate custom Control4 scenes that include music, blinds, or other devices.

• Go beyond lighting! Program button presses to trigger whole-home experiences, such as a "Goodnight" scene that turns off lights, locks doors, and sets your thermostat.

• Customize short presses, or long presses (hold) for even more control; allowing a single switch to handle multiple commands.

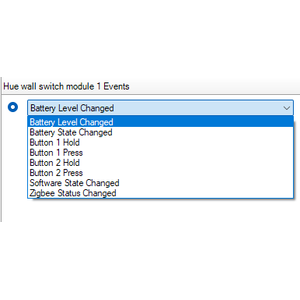

• Event Support for Battery Level, Battery State, Button Hold/Press, Software State and Zigbee Status.

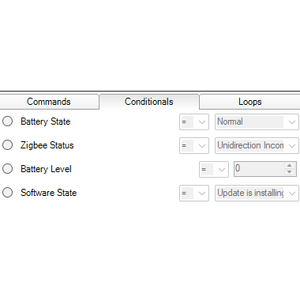

• Conditionals for Battery Level, Battery State, Software State and Zigbee Status.

Included Drivers:

1. Bridge

Supported Devices:

• Bridge V2

Features:

• V2 Local API Support: Utilizes the Philips Hue Bridge's V2 local API for faster and efficient communication between the Hue Bridge and Control4.

• Device Discovery: Automatically detects Bridges on the same network.

• Two-Way Communication: *Ensures real-time status synchronization between Control4 and the Hue Bridge, keeping both systems updated with changes.

• Bulk Device Importing: Saves time for setting up a new system. Automatically add all devices to a room in your Project in one go, based on device type. Each driver instance will automatically rename itself to the name assigned within the Hue App.

*Two-way synchronization is not guaranteed for lights under all circumstances. It is recommended to use Control4 to control your devices.

1. Hue Wall Switch

Supported Devices:

• Philips Hue Wall Switch

Support

Contact information:
For any support, questions, or if you would like additional devices supported please contact us at whistleprojects.control4@gmail.com.
