Effe Hamman

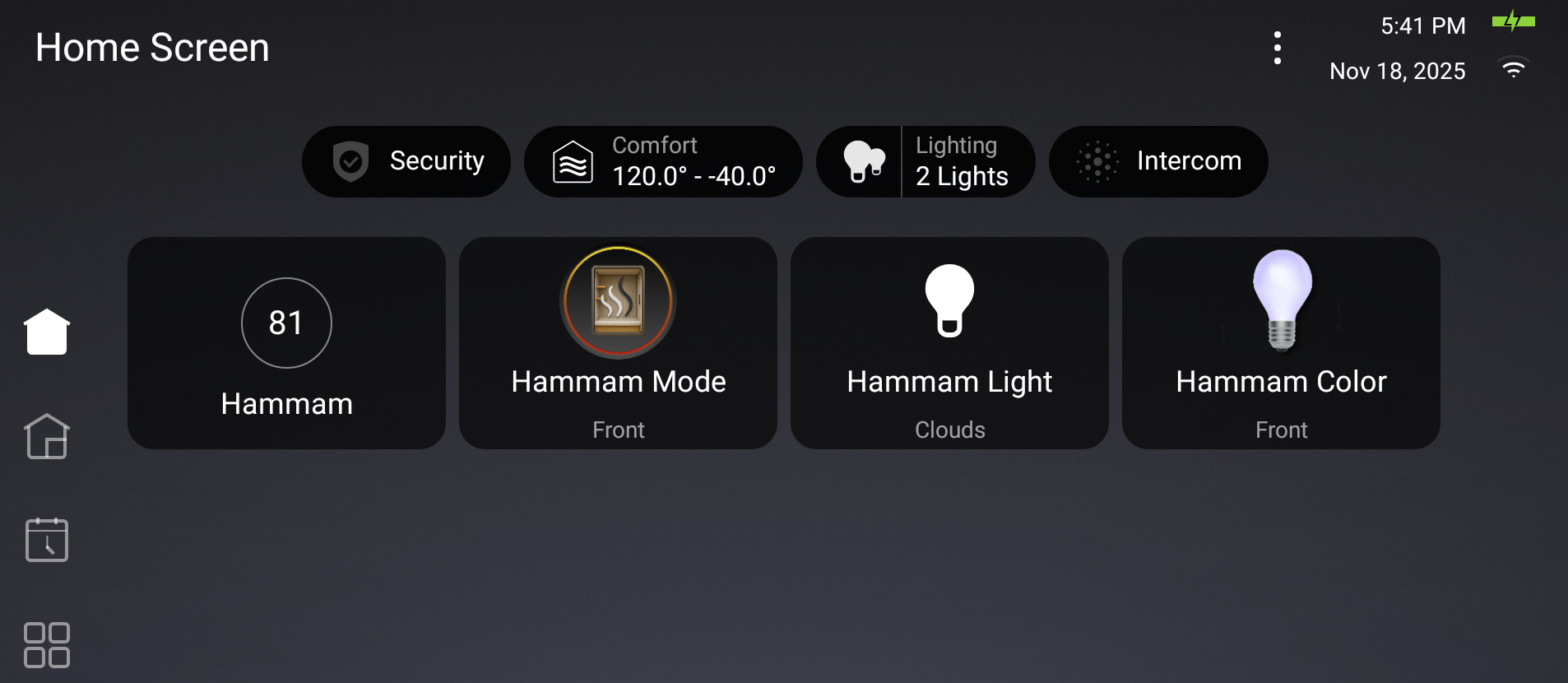

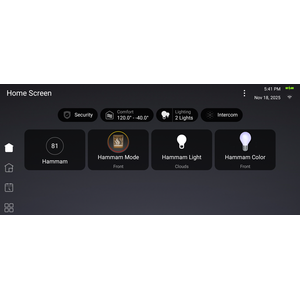

The Effe Hammam driver provides full Control4 integration for Effe steam and Turkish bath systems. Users can control steam levels, standby mode, lighting, color therapy programs, mood ambience, and view temperature feedback directly within Control4. The driver uses the ThermostatV2 proxy for intuitive UI control, as well as presets and scheduling. Communication is handled through an RS-232-over-RS485 connection with buffering and retry logic for stable and reliable operation.

• Full Control4 integration for Effe Hammam and Turkish Bath systems
• Steam level control: Off, No Steam, Low Steam, Medium Steam, High Steam
• Lighting control (on or off), color therapy programs, and mood ambience if supported by hardware
• Live temperature feedback displayed within Control4 via Thermostat V2 Proxy
• ThermostatV2 proxy support providing presets, schedules, and intuitive navigation
• Configurable auto-off timer from 0 to 60 minutes with countdown messaging
• Optional UI Button driver for rotating steam modes and cycling color therapy programs
• RS-232 communication with buffering and retry logic
• Built-in debugging tools and integrated support ticket submission

• Spa and wellness scenes that activate targeted steam levels and lighting atmospheres
• Daily scheduling that prepares the hammam before morning or evening routines
• Commercial spa and gym installations using simple UI mode rotators
• One-touch UI button control for cycling steam or color therapy modes

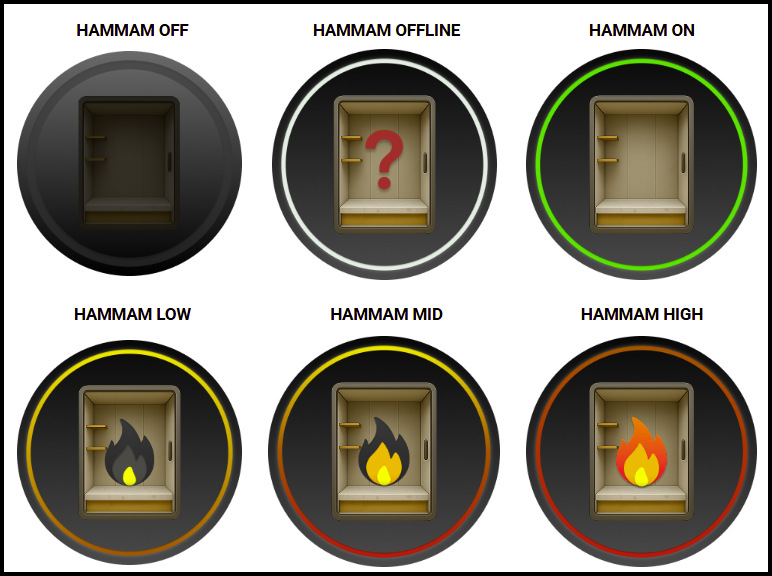

Heat and Mode States: (Off, No Steam, Low Steam, Medium Steam and High Steam)
Lighting States: (Light Off and Light On)
Color Therapy Programs: (Off, Red, Yellow, Green, Blue, Cyan, Dawn, Sunset, Sea and Woods)
Mood Lighting: (Mood On and Mood Off)

Does this driver support scheduling and presets?
Yes. Using the ThermostatV2 proxy, users can create presets and schedules just like a climate device.

Can the driver control lighting or color therapy?
Yes, if the Effe unit supports these features. Optional functions can be enabled or disabled in driver properties.

Does the Control4 interface update if someone uses the Effe control panel manually?
Yes. The driver updates the current state automatically inside Control4.

Can this work with Effe Saunas?
The driver is built for Hammam systems. Sauna support can be added in collaboration with a dealer. Contact info@cindev.com for details.

Is the auto-off timer adjustable?
Yes. The timer can be configured between 0 and 60 minutes.

• Compatible with Effe Hammam and Turkish Bath units using an RS-485 data interface
• Effe Sauna units may be supported after testing; dealers may contact info@cindev.com
• RS485 to RS232 communication is required

Required Hardware:

RS232 Requirements:
• RS485 to RS232 adapter
• Industrial-grade adapters recommended for stability and surge protection
• RS232 settings: 115200 baud, 8 data bits, no parity, 1 stop bit

Wiring Connections:
• RS485 T/R+ to Effe Data+
• RS485 T/R- to Effe Data-
• RS485 Ground to Effe Data Ground

Compatible with Control4 OS 3.4.3 or higher

A single license will unlock as many instances of the driver as needed in your project. Cloud Driver is required to activate all DriverCentral licenses and trials. To find out more about drivercentral features click here. Additionally, here is a quick video that demonstrates the licensing process.

All Cinegration Development drivers for Control4 come with a 30-day trial. Simply add the DriverCentral licensing driver along with this driver and you can fully test the driver before purchasing. Including Cinegration Development drivers in your showroom project will give you unlimited use without purchase.

Driver is provided by Cinegration Development LLC.  All rights reserved.
