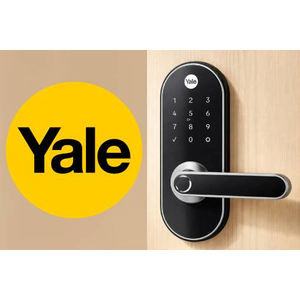

The 4Drivers Yale Connect Hub driver brings Yale Connect Brazil (ASSA ABLOY) smart locks into Control4 through a direct integration with the Yale Connect cloud API. No local hub bridge or additional hardware is required beyond the Yale Connect system already in use.
How It Works
The driver authenticates with the Yale Connect Brazil platform using the account credentials configured in Composer Pro. Once authenticated, it discovers all locks registered to that account and automatically installs and configures an individual 4Drivers Yale Connect Lock driver for each one — no manual setup per device required.
From that point on, the hub manages token renewal silently in the background, polls lock states at regular intervals, and routes lock and unlock commands from Control4 to the Yale cloud in real time.
HTML Interface

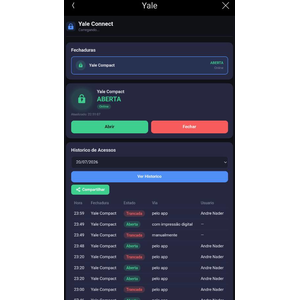

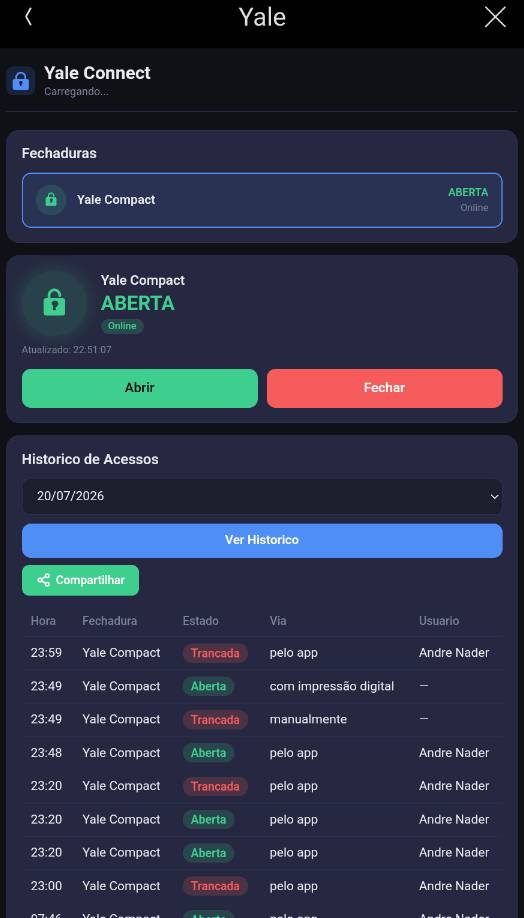

A built-in responsive HTML interface runs on any Control4 Navigator — physical touchscreens, the iOS and Android apps, and browser-based navigators. The interface provides:
- Interface in 3 idioms, Portuguese, English and Spanish
- A list of all locks with live Locked/Unlocked and Online/Offline status
- A status panel for the selected lock with Lock and Unlock action buttons
- A battery warning indicator per lock
- A full access history viewer, filterable by date, showing time, lock name, access method (app, keypad, fingerprint, manual), and user
- A visual activity chart plotting lock and unlock events across a 24-hour timeline
Key Features
- Direct integration with the Yale Connect Brazil (ASSA ABLOY) cloud API
- Automatic lock discovery and Lock driver provisioning via the List Locks action
- Per-lock visibility control — hide service or private-area locks from the end-user interface
- Real-time command routing (lock/unlock) from Control4 programming or the Navigator
- Automatic token renewal — no manual re-authentication after initial setup
- Hub Online and Hub Offline events for use in Control4 programming and notifications
- Multi-language HTML interface: Portuguese, English, and Spanish
- Compatible with Control4 OS 3.0.0 and above
In the Box
This listing includes two drivers that work together:
- 4Drivers Yale Connect Hub — the account and communication driver, added once per Yale account
- 4Drivers Yale Connect Lock — the individual lock driver, auto-installed by the hub for each discovered lock
Requirements
- Yale Connect Brazil account with at least one registered lock
- Control4 OS 3.0.0 or higher
- Controller with internet access (the driver communicates directly with the Yale cloud)
