Tholz SmartPool

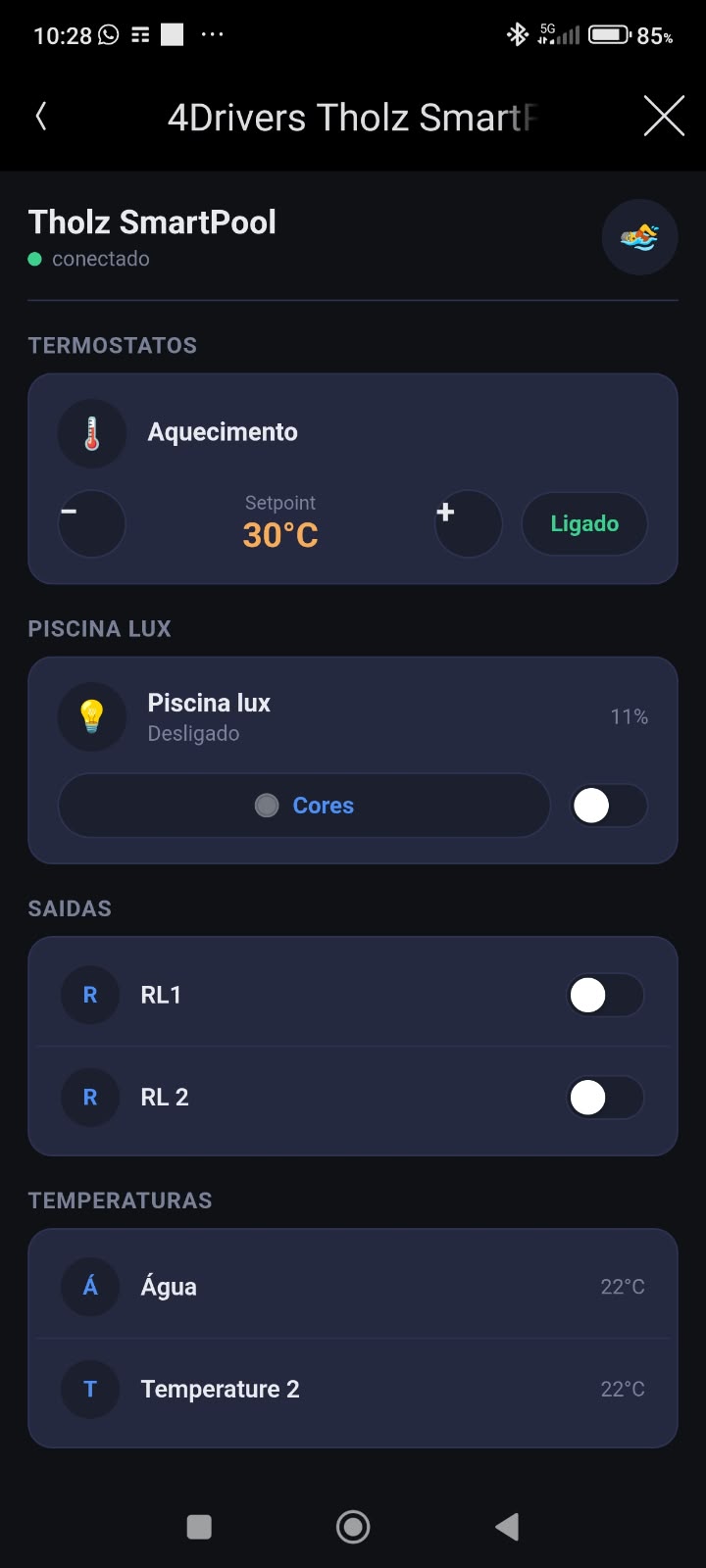

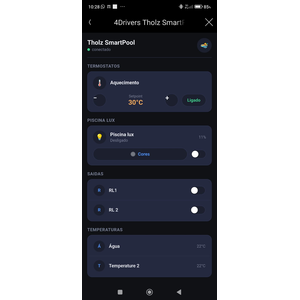

The Tholz SmartPool package brings full Control4 integration for Tholz pool automation equipment, combining three drivers into a single, flexible solution. At its core, 4Drivers Tholz SmartPool UI connects directly to the Tholz SmartPool module over the network (TCP/IP) and provides a complete built-in interface for lighting, heating and relays — no other driver required. Two optional companion drivers, 4Drivers Tholz RGBW and 4Drivers Tholz Thermostat, add standard native Control4 cards for that same lighting and heating, so each installation can use whichever control experience — or combination of both — fits the project.

Both lighting and heating can be controlled two ways, and the two stay in sync automatically: through the SmartPool UI’s own built-in screen, or through the native Control4 light and thermostat cards added by the companion drivers — useful for keypad and remote programming, voice control, and scenes or schedules that expect a standard Control4 proxy.

Key Features

• Single network connection to the Tholz SmartPool module (TCP/IP) — all three drivers share it through the SmartPool UI hub

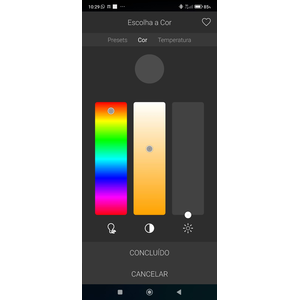

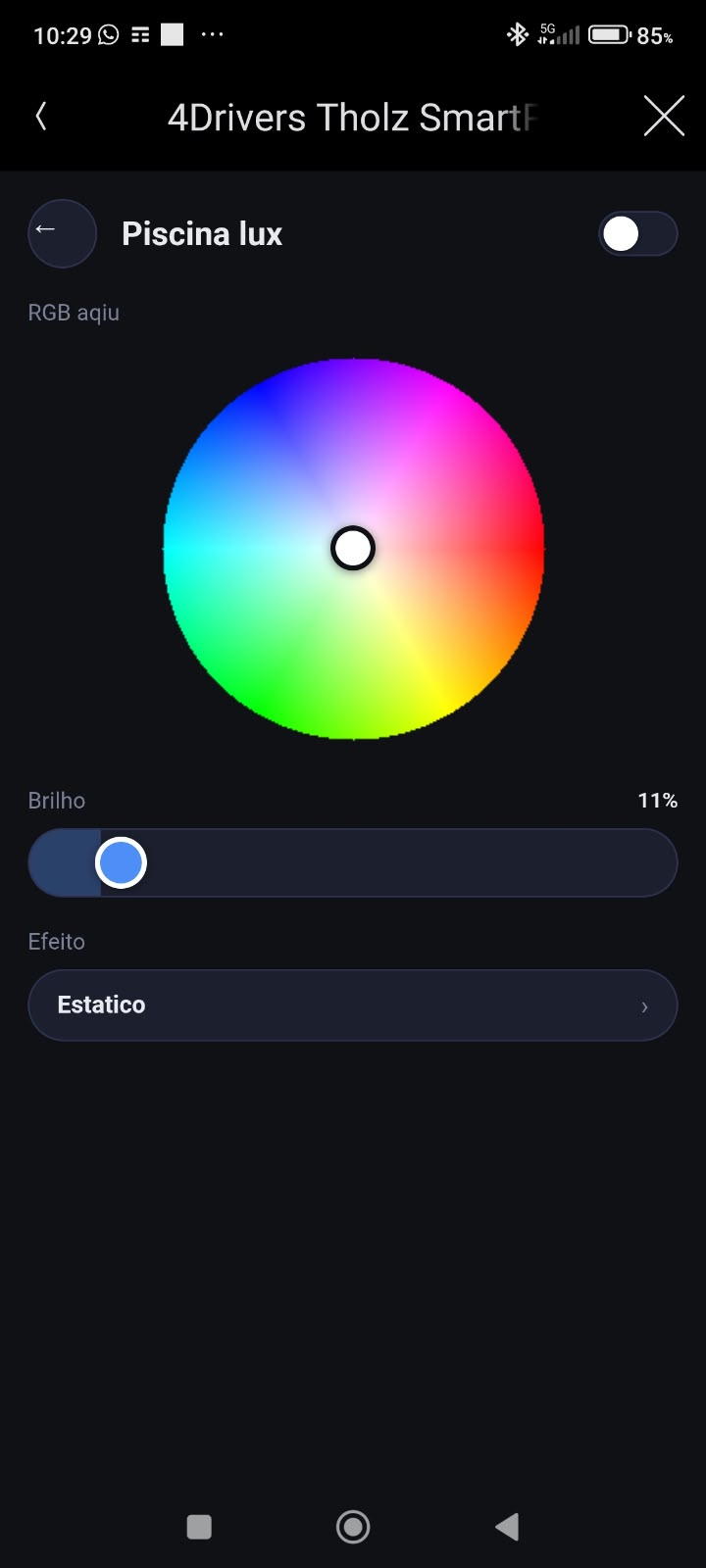

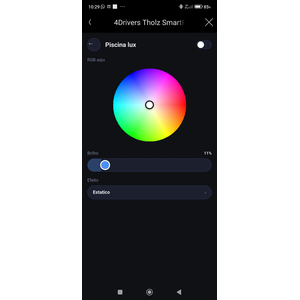

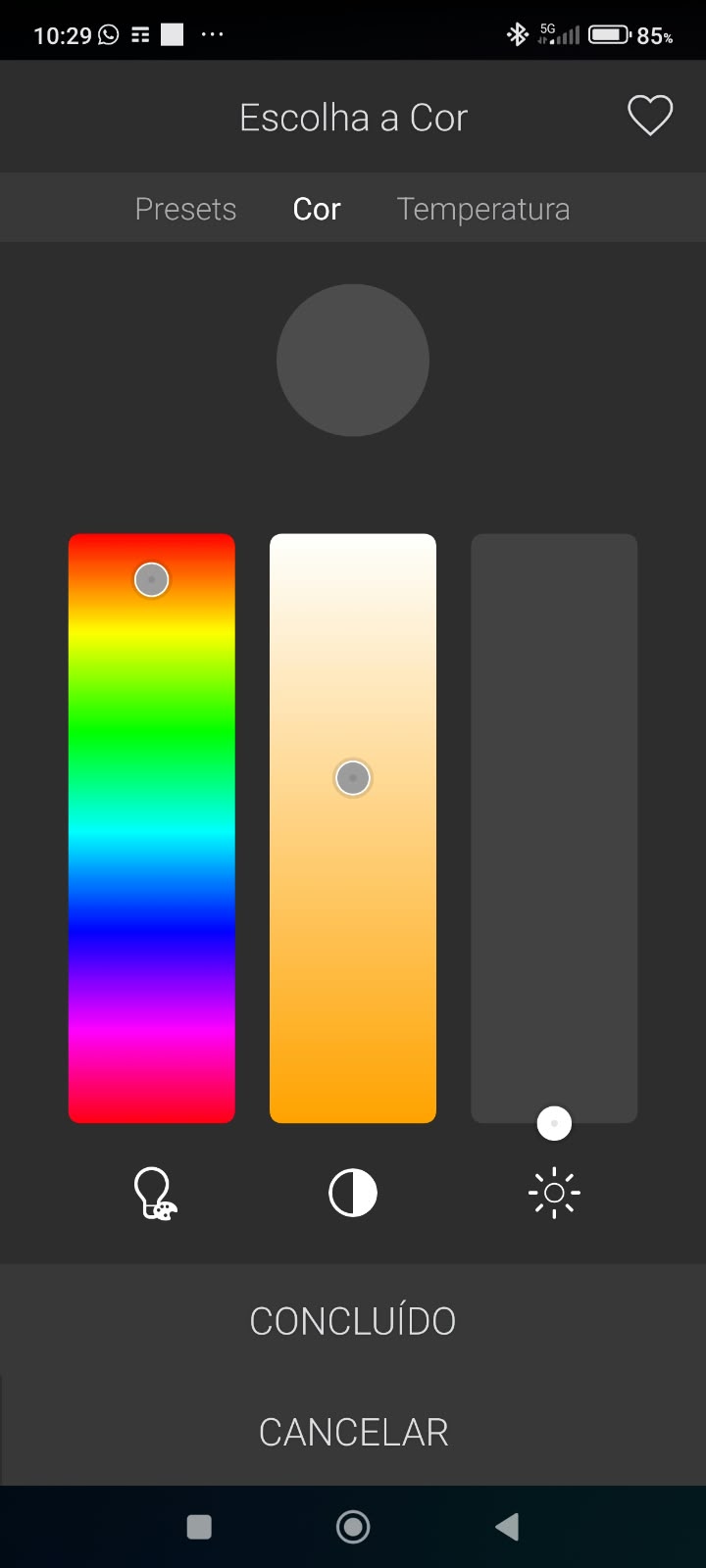

• Full RGBW/RGB/Mono lighting control: color wheel, brightness, dedicated white channel and the equipment's built-in effects — from the built-in screen and, with the RGBW companion, from a native Control4 light card as well

• Up to 2 heat exchangers and up to 5 auxiliary relays, plus up to 4 extra temperature sensor readings, all individually named and shown only when configured

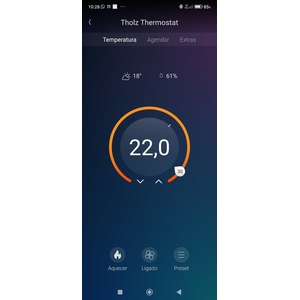

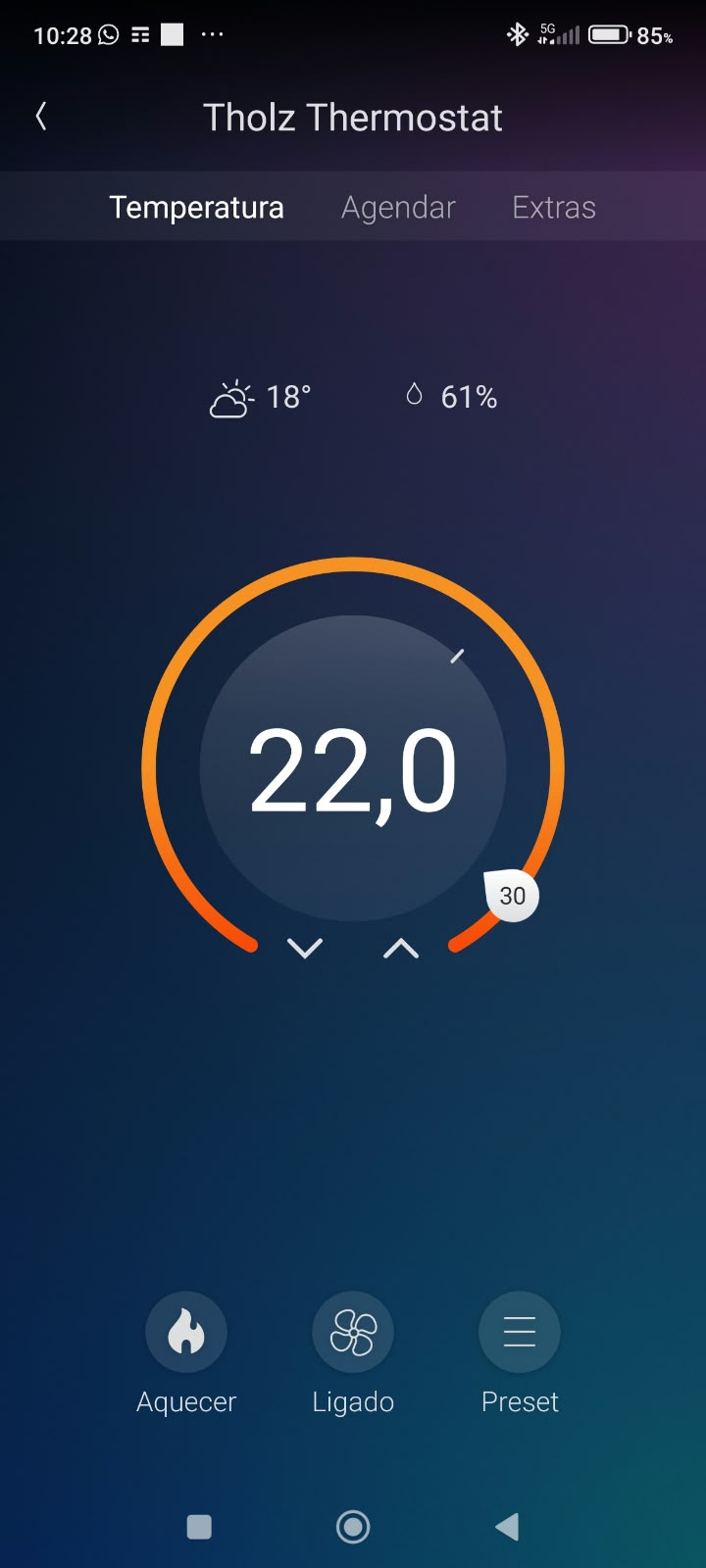

• Heating available as a native Control4 thermostat card (with the Thermostat companion), with full Celsius/Fahrenheit support — the card's scale toggle switches the display between °C and °F on the fly, while the driver always talks to the equipment in Celsius

• Choose the icon shown on the Control4 Navigator for the SmartPool UI — Heater, Pool or RGB Light — automatically switching between an “on” and “off” state

• Multi-language built-in interface (Portuguese, English, Spanish) with a Celsius/Fahrenheit display option

• Full support for native Control4 Presets, scheduling and programming through the companion drivers

• Compatible with both Modern and Legacy Tholz SmartPool equipment
