Airthings Air Quality
Native Control4 integration for Airthings air-quality monitors. Live dashboard, threshold events, full programming surface.
Description:
This driver suite turns every Airthings device on your account (View Plus, Wave Plus, Wave Radon, View Pollution, View Radon, etc.) into a fully-programmable Control4 endpoint — no scripts, no workarounds.
Install the Airthings Cloud driver once, paste your API credentials, click Install Devices, and every Airthings unit on the account becomes a Control4 device with its own touchscreen dashboard, Composer Settings tab, and programming variables.

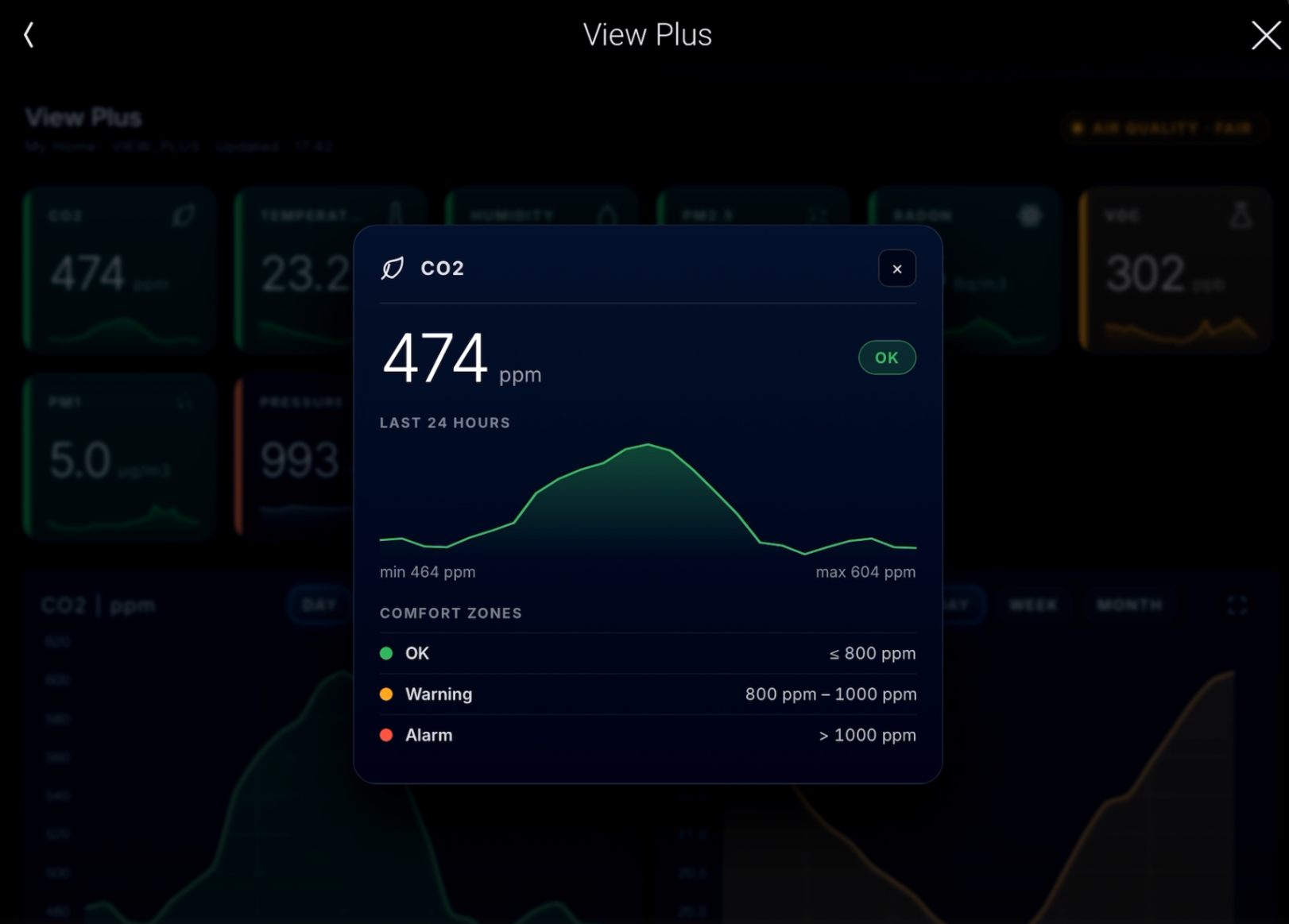

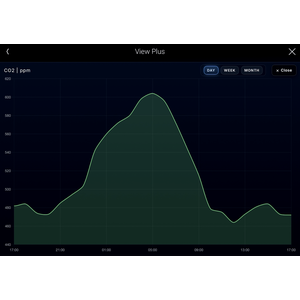

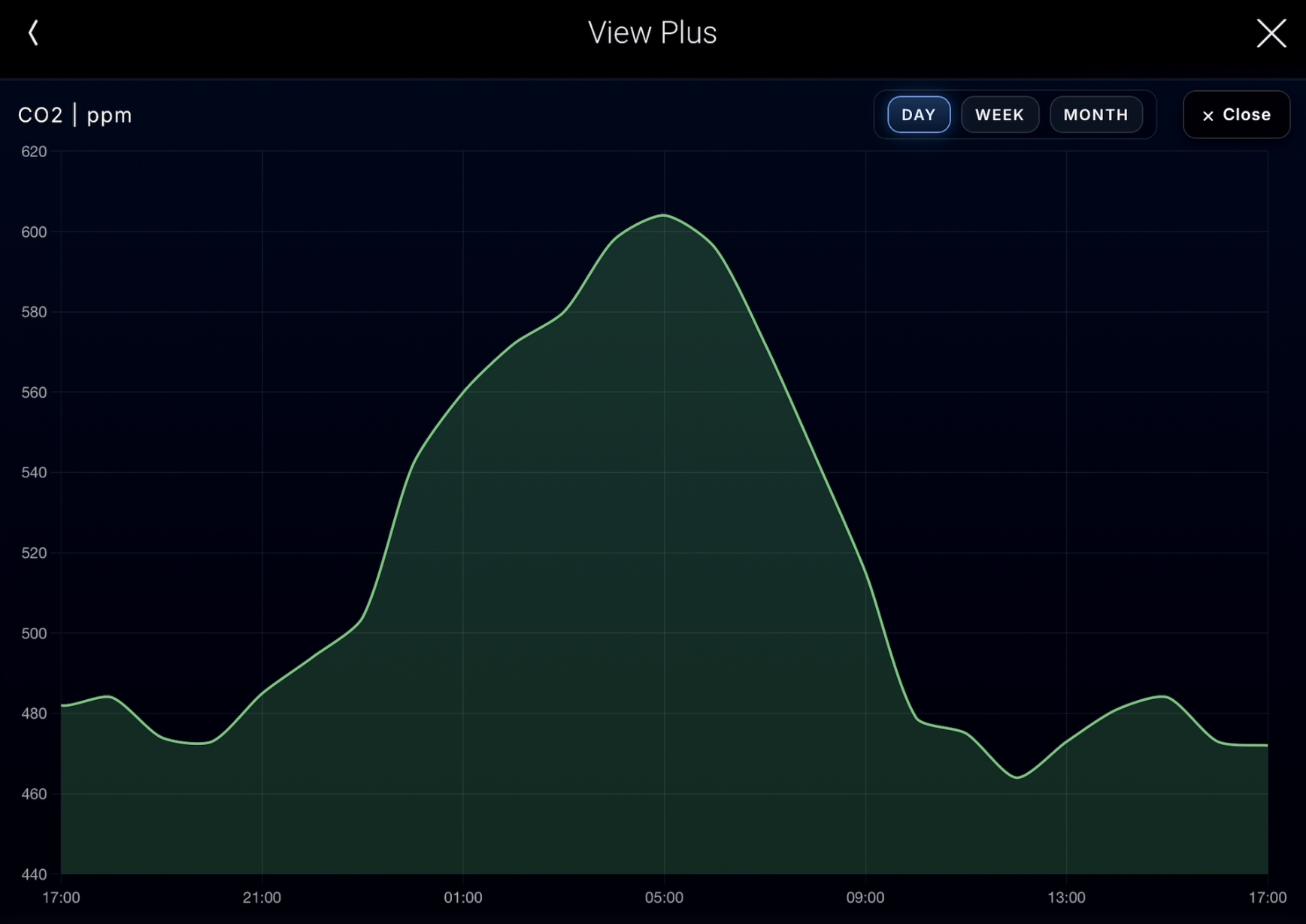

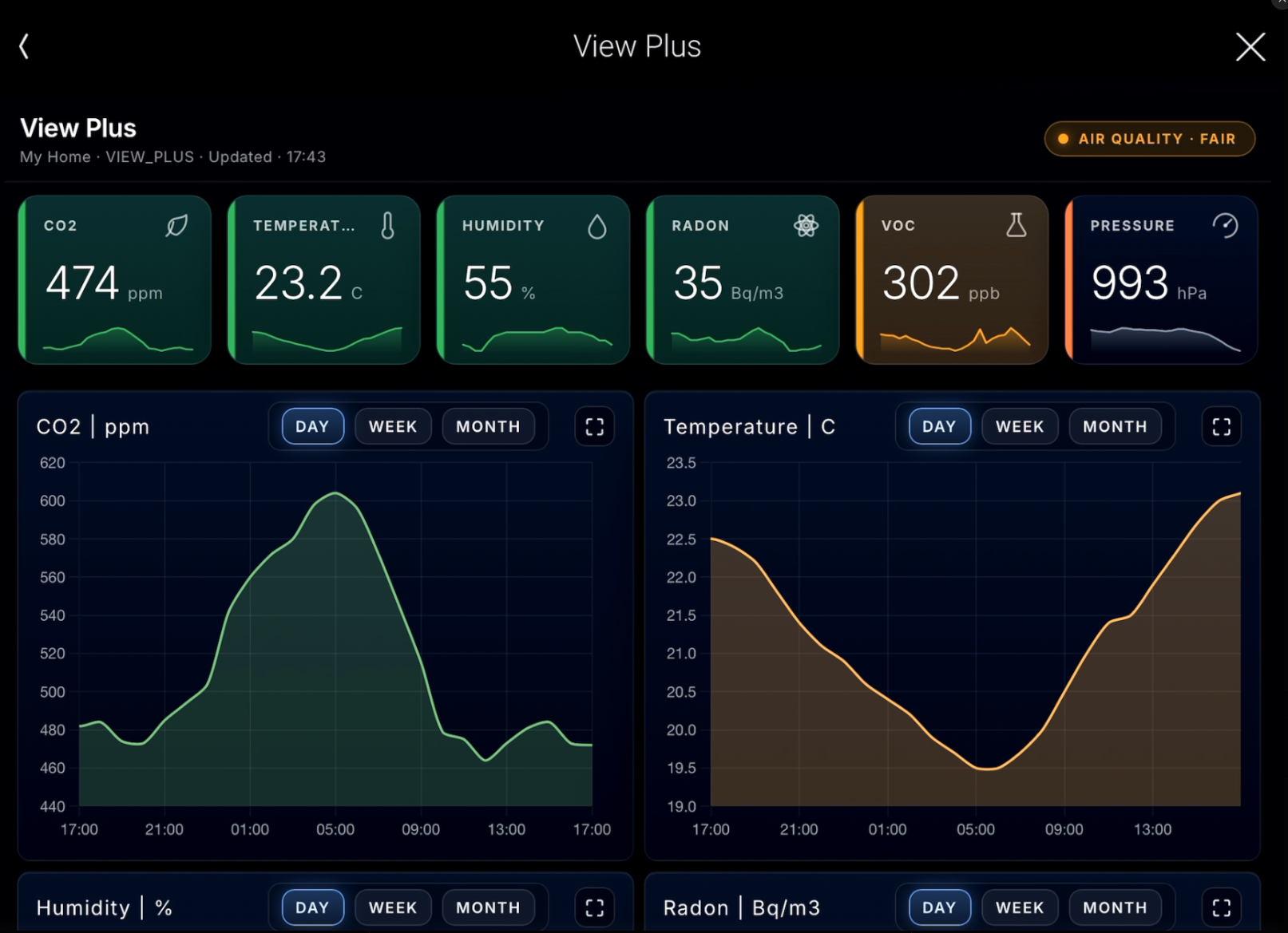

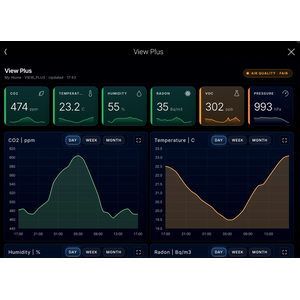

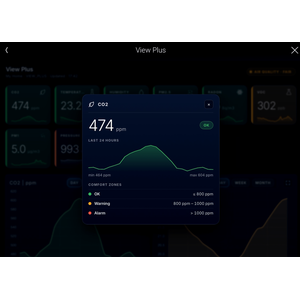

The touchscreen dashboard shows live cards with current values and 24-hour sparklines, plus per-sensor history graphs (DAY / WEEK / MONTH). Double-tap any card for a detail view with min/max and comfort zone bands; tap the expand icon for a pannable full-screen graph.

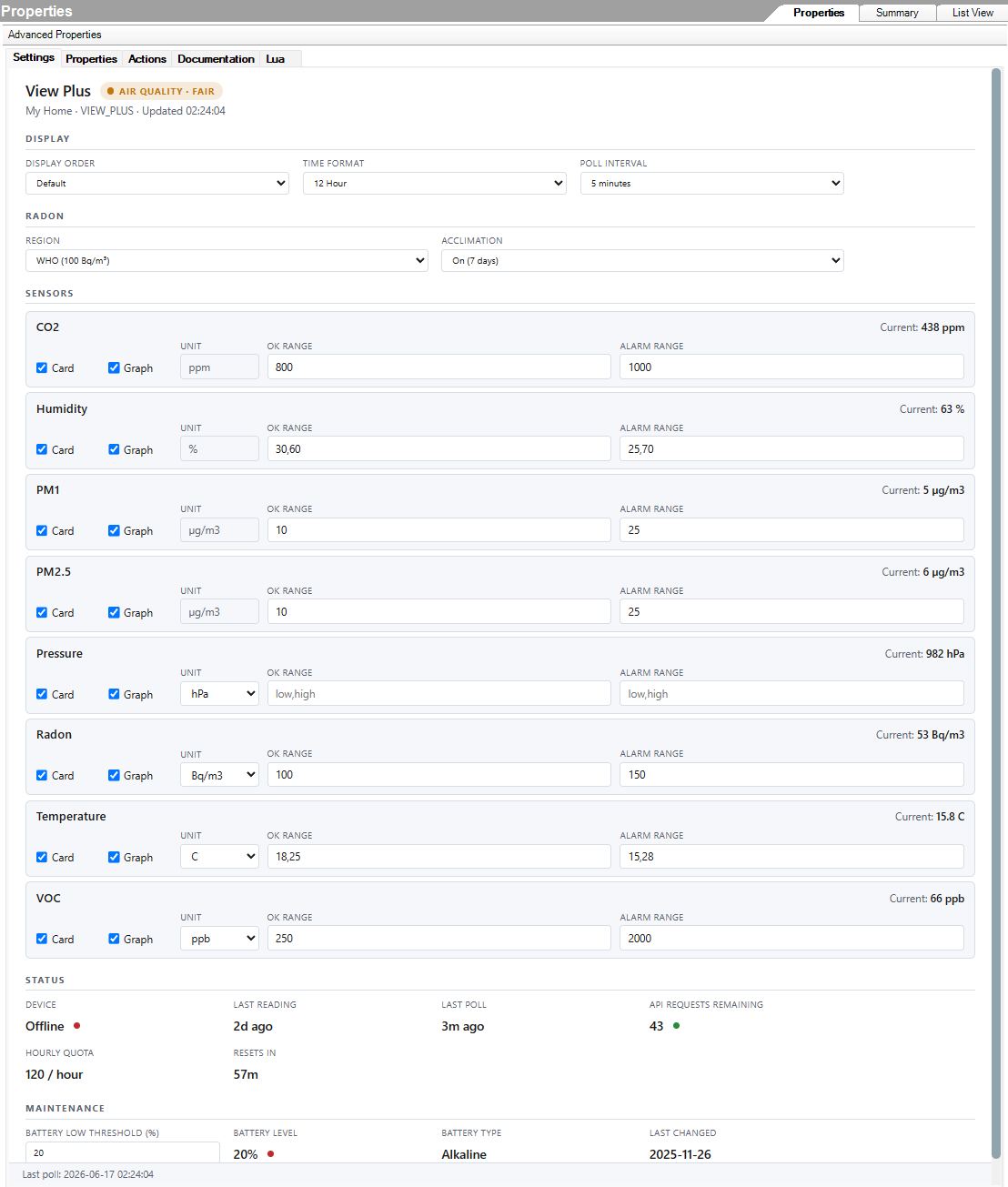

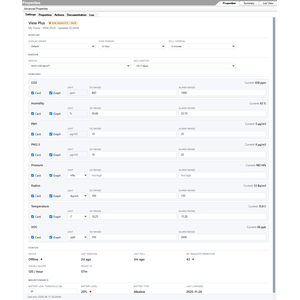

The Composer Settings tab puts every configurable knob in one screen — display order, time format, polling interval, per-sensor card/graph visibility, units, OK & Alarm thresholds, radon region presets, battery alerts — with each sensor's current reading shown inline. Edits save automatically and take effect immediately.
For programming, every sensor publishes a current-value variable plus a status variable (OK / Warning / Alarm). Aggregates expose Air Quality, the Worst Sensor driving it, and an Online flag for routines that need to react to a disconnected device. Threshold-based events fire only on zone transitions — no spam on every poll.
Features:
One-click multi-device install via the Cloud driver
Live touchscreen + Control4 app dashboard with cards, sparklines and DAY / WEEK / MONTH history graphs
Per-device Composer Settings tab for everything (thresholds, units, visibility, polling cadence)
Threshold-based events per sensor: Entered Warning, Entered Alarm, Returned To OK
Aggregate variables: Air Quality (Good/Fair/Poor), Worst Sensor, Online
Radon region presets (WHO, EPA US, Health Canada) and 7-day acclimation window
Unit choices: Temperature °C/°F, Pressure hPa/inHg, VOC ppb/mg/m³, Radon Bq/m³ / pCi/L
Configurable poll cadence per device (5 / 10 / 15 / 30 / 60 min)
Offline detection with a dedicated Online programming variable
Battery monitoring (level, chemistry, last-changed date)
Live API quota indicator so you can spot rate-limit pressure at a glance
Requirements:
Control4 OS 3.x or X4 with internet access
An Airthings account + API credentials (Consumer-tier read:device:current_values scope)
DriverCentral Cloud driver installed in the project
Active DriverCentral licence or trial
